185rpm Square Brushless DC Electric Motor with Silent Working

I'm Online Chat Now
China Cirolla Motor Co.,Ltd certification
China Cirolla Motor Co.,Ltd certification
Thank you so much for all you've done in making things easy for me. I see that you must be the greatest asset to your company.

—— Gary Strauss-USA

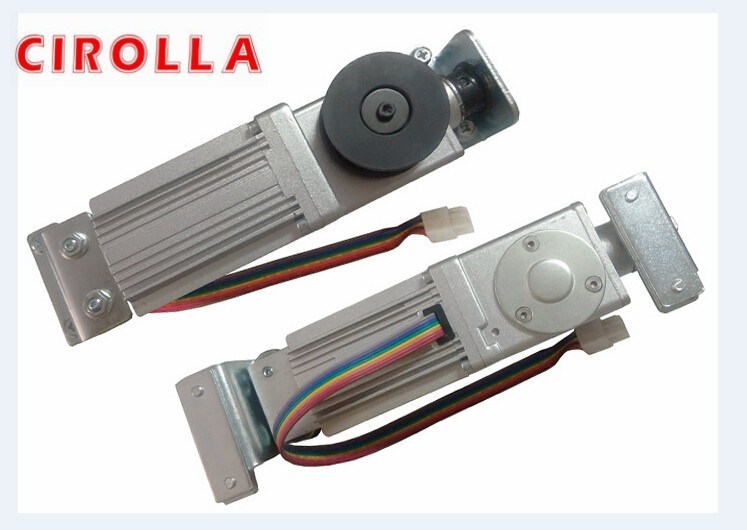

185rpm Square Brushless DC Electric Motor with Silent Working

large.img.alt
small.img.alt

Large Image :  185rpm Square Brushless DC Electric Motor with Silent Working Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: CIROLLA
Certification: CE/CCC/ SGS
Model Number: 4009
Payment & Shipping Terms:
Minimum Order Quantity: 300PCS
Price: Negotiation
Packaging Details: Standard export carton or pallet,10pcs/carton, weight 2.5kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 50,000pcs/month
Detailed Product Description
Motor Type: Brushless Voltage& Power: 24VDC, 75W
Function: Automatic Sliding Doors Working Temperature: -25~ C+55 C
Rotate Direction: CW &CCW Open Style: Sliding
High Light:

high torque brushless dc motor

,

24 volt dc motor



185rpm Square Brushless DC Electric Motor with Silent Working​



Description:



A typical brushless motor has permanent magnets which rotate around a fixed armature, eliminating problems associated with connecting current to the moving armature. An electronic controller replaces the brush/commutator assembly of the brushed DC motor, which continually switches the phase to the windings to keep the motor turning. The controller performs similar timed power distribution by using a solid-state circuit rather than the brush/commutator system.




Applications:



Any job that uses a brush DC motor can use a brushless DC motor instead. BLDC motors are used in PC cooling fans, DVD players, turntables, and even electric cars. They are also in demand for use in model aircraft because of their ability to provide the necessary power at a low weight. If you’re looking for increased motor efficiency, check to see if you can replace the brush motor you’re currently using in your project with a BLDC motor.





Specifications:

Brushless dc Motor Specs:



Type

Brushless

Rated Voltage

24VDC

Rated Power

75W

No-load speed

185rpm

On-Load speed

150rpm

Noise level

≤50dB

Protection class

IP54

Weight

2.5kg

Gear Ratio

1:12

Lifetime

3million cycles,10years

Application

Automatic door





 Automatic sliding door Operators:



185rpm Square Brushless DC Electric Motor with Silent Working 0





Motor Outline drawings:



185rpm Square Brushless DC Electric Motor with Silent Working 1



Competitive Advantage:



The increased efficiency and reliability that a brushless motor offers, along with its low weight and small size, make this type of motor the perfect choice for a wide range of applications. Find the brushless motor that’s ideal for your project today.





Automatic sliding door Operator:



185rpm Square Brushless DC Electric Motor with Silent Working 2
