High Light: | electric roller shutter motor,rolling shutter motor |
---|

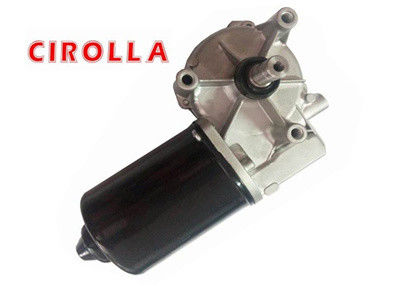

50Watt Roller Shutter Door Motor with Hard wearing Glass Fiber Gears
Quick Detail:
Function: Control Type: Worm gear reduction: 24VDC,50W
Construction: Permanent Magnet Structure and Working Principle: Brush
Operating Speed: High Speed Gear material: Nylon
Application: Doors, Universal, Industrial, Household Appliances, machine power system
Description:
The motor can be used for automatic garage opener , roller door opener and other automatic product drive units, it is low noise, long life and easy to be setted. Inside the motor, The output speed and output shaft size can be made to fit what you want.
Applications:
Roller shutters have many applications, including doors for vans, garages, kitchens, schools, prisons and warehouses. In some parts of the world, roller shutters are subsidized by local governments [1] due to the inherent security benefits. In areas that are frequently exposed to inclement weather, roller shutters are used as a method of insulation and can protect windows against hail damage.
Specifications:
Motor Performance:
Type |
Brush |
Voltage |
24VDC |
Power |
≥50W |
No load Speed |
125rpm |
No load Current |
0.6A |
On load Speed |
100rpm |
On load Current |
2.8A |
Work torque |
3Nm |
Stall torque |
15Nm |
Gear material |
Glass fiber |
Protection class |
IP44 |
Weight |
1.5kg |
Characteristic curves of motor:
State |
Voltage |
Current |
Pin |
Torque |
Speed |
Pout |
Eff |
V |
A |
W |
N.m |
rpm |
W |
% |
|
Speed_max |
24.03 |
0.495 |
11.90 |
1.48 |
118.9 |
18.44 |
154. |
Eff_max |
24.02 |
0.544 |
13.08 |
1.63 |
118.1 |
20.17 |
154. |
Pout_max |
23.99 |
5.978 |
143.4 |
9.44 |
62.9 |
62.16 |
43.3 |
Torque_max |
23.95 |
11.57 |
277.2 |
15.70 |
0.0 |
0.00 |
0.0 |
End |
23.95 |
11.57 |
277.2 |
15.70 |
0.0 |
0.00 |
0.0 |
Outline drawings of motor:
Competitive Advantage:
Automatic Safety Reverse – Garage Ace sensors when someone or something is in the way, and reverses automatically.
Automatic Run Time - If motor is activated while disengaged, the auto run time will turn motor off after 30 seconds
Quiet Operation - No need to let the neighborhood know when you come and go!
Handy Wall Switch - Door can be operated from switch on interior mounted control box independently of remote transmitter.
DIY Installation - Step-by-step instructions will guide you through installation. the opener can be installed on the left or right-hand side of the door.
Courtesy light - Comes on automatically when the door is in use. The light will stay on for approximately 3 minutes, then turns off automatically.
Safe and Secure - High security rolling code transmitters. Two remotes supplied.
Manual Override - Motor can be easily disengaged in the event of power failure for manual operation of door.
