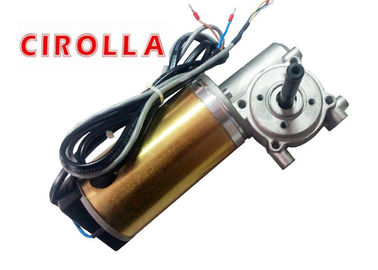

Automatic Door 1 Signal Worm Gear DC Motor 40 Pulse Honeywell Encoder

large.img.alt
small.img.alt

Large Image :  Automatic Door 1 Signal Worm Gear DC Motor 40 Pulse Honeywell Encoder Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: CIROLLA
Certification: CE/CCC/ SGS
Model Number: 4002
Payment & Shipping Terms:
Minimum Order Quantity: 300PCS
Price: Negotiation
Packaging Details: Standard,10pcs/carton, weight 2.0kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 50,000pcs/month
Detailed Product Description
Motor Type: Brush, 24VDC, 60W Construction: Permanent Magnet
Rotation Direction: Reversible Application: Automatic Sliding Door
Door Configuration: Single Door, Double-door Encoder Available: 1 Signal, 40pulse, Honeywell Brand
High Light:

brushed dc gear motor

,

high torque gear motor





Automatic Door 1 Signal Worm Gear DC Motor 40 Pulse Honeywell Encoder​





Description:



In a gear motor, the magnetic current (which can be produced by either permanent magnets or electromagnets) turns gears that are either in a gear reduction unit or in an integrated gear box. A second shaft is connected to these gears. The result is that the gears greatly increase the amount of torque the motor is capable of producing while simultaneously slowing down the motor's output speed. The motor will not need to draw as much current to function and will move more slowly, but will provide greater torque.





Applications:



There are many applications in industry and manufacturing for a small motor that applies a tremendous amount of motive force to an object at a relatively low speed. Common appliances that contain a gear motor include power drills, washing machines, mechanical clocks, and cake mixers. In heavy industry, these motors are used to power a wide variety of tools such as cranes, lifts, jacks, clamps, mixing machines, and conveyance machines.

Automatic Door 1 Signal Worm Gear DC Motor 40 Pulse Honeywell Encoder 0





Specifications:

Motor specs:



Type

Brush

Voltage

24VDC

Power

60W

No load Speed

250rpm

No load Current

0.7A

On load Speed

200rpm

On load Current

3.5A

Stall torque

12Nm

Protection class

IP44

Weight

1.5kg

Encoder Honeywell

1signal,40pulse





Automatic Door 1 Signal Worm Gear DC Motor 40 Pulse Honeywell Encoder 1





Competitive Advantage:



One specific type of gear motor is an alternating current (AC) powered electric motor. These motors are very cost efficient and fast, and output can range anywhere between 1,200 and 3,600 revolutions per minute. Torque can be customized to synchronize with normal speeds as well as stall speeds. A small minority of gear motors are direct current (DC) powered. DC-powered motors are primarily employed in the automotive industry as important components of car construction, including windshield wiper motors, power winches on trucks, and power seat or power window motors.
