Type: | Brushless | Voltage&Power: | 24VDC 75W |
---|---|---|---|
Application: | Automatic Sliding Door | Door Weight Bearable: | 300kg /2 Leaves |
Door Width: | 650~1600mm | Lifetime: | 3million Cycles, 10years |
High Light: | DC 24V Automatic Door Operator,Brushless Automatic Door Operator,75W Automatic Door Operator |

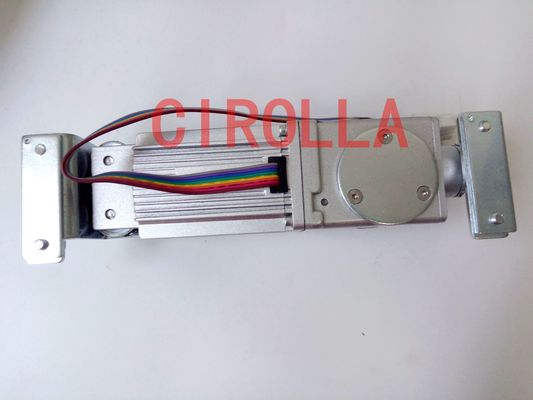

DC 24V Automatic Door Operator, with Brushless Motor ,CE certificated
Cirolla motor is specialize in automatic door field for more than 10 years ,supplied in producing kinds of DC MOTORS for automatic revolving door, sliding door , sliding door Operator, medical hermetic door, swing door with higher quality and competitive price.
The DC-motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Specifications
Automatic door motor
1. 24V DC, 75w brushless motor
2. Gear and worm transmission
3. Steel wheel
Automatic door motor
(1)24V,75W brushless DC motor
(2)Long life span
(3)Quiet,and small in size
(4)High level of efficiency
Competitives:
Intelligence
A)Controlled by the microcomputer digital chips ,giving the control unit multiple programmable modes including provision to interface with builidng security system, monitoring the doors position status,built-in UPS,etc
B)Wide operational parameter setting like speed,hold-on time,power,etc
Safety
A)Safety bea sensor safety to prevent from clamping person
B)Auto-reversing when confronting with obstacle.
C)UPS when power fails to provide escaping passage
D) The microcontroller also provide the interface for alarming system ,safety system ,etc
E)Fuse protection at 1A, 250V
F)Protection when working temperature is over setting value
Sliding Door Mechanism Specification
Door model | Single | Two Panels | ||||
Door width | 700-1300mm | 600mm-1250mmn | ||||
Door weight | 150kg | 150kg x 2 | ||||
Opening speed | 15cm-50cm/s | 15cm-45cm/s | ||||
Clsosing speed | 10cm-45cm/s | 10cm-43cm/s | ||||
Hold on time: | 0-9s | |||||
Motor | brushless 24 volt DC,60W ,high torque 3000r/min | |||||
Microcontroller | PLC techniques and 16 bit MCU, Visialbe adjustment screen | |||||
Power supply | 110V-250V,60Hz/50Hz | |||||
Profile size | 4200mm(L)x 128mm(H)x 100mm(W) |
Sliding Door Mechanism Components
Retro-fit kit |
|||
1 |
Motor & Gearbox |
1pcs |
China-made 24V,60W ,DC bruthless motor |
2 |
Microcontroller |
1pc |
8 bit Microchip chip |
3 |
Radar |
2pcs |
Optex infrared sensor for sliding door operator |
4 |
Learning code remote controller |
1set |
Hold-open,lock,exit only, half-open,automatic |
5 |
Carriage |
4pcs |
2 running wheel |
6 |
Tooth belt |
1pc |
8m, fiberglass tensile elements, nylon surface |
7 |
Belt clamp |
2pcs |
|
8 |
Idle pulley |
1pc |
Aluminum alloy |
9 |
Stopper |
2pcs |
Aluminum alloy |
10 |
Connection termial |
1pc |
For 220V power ,and outside sensor connection |
Profile |
|||
1 |
Track |
1pc |
3mm thickenss, Anodize, height 125mm, depth 100mm,length 4200mm |
2 |
Cover |
1pc |
170mm height,anodized |
Options |
|||
1 |
Photocell |
1set |
factory-,made |
2 |
Electro-mechanical lock |
1set |
12V,time delay |
3 |
Emergency battery |
1set |
12V,7Ah,contiunously working half an hours |
4 |
Control panels |
1set |
LCD display, key swtich,5 program adjust |
5 |
Floor guide |
2pcs |
For frame and frameless door |
6 |
Glass clamp |
2pcs |
1m length, fit to 10mm,12mm glass |
