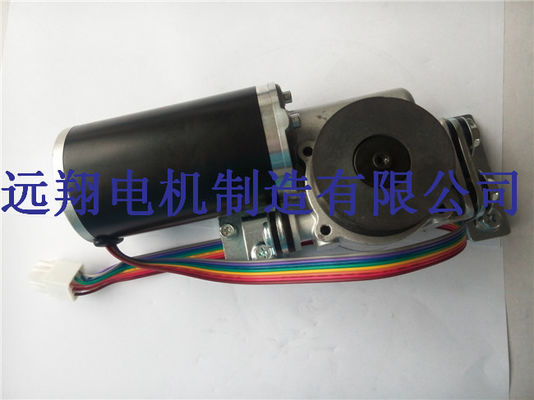

DC 24V Automatic Sliding Door Motor Elevator Door Motor 650-1600mm

I'm Online Chat Now
China Cirolla Motor Co.,Ltd certification
China Cirolla Motor Co.,Ltd certification
Thank you so much for all you've done in making things easy for me. I see that you must be the greatest asset to your company.

—— Gary Strauss-USA

DC 24V Automatic Sliding Door Motor Elevator Door Motor 650-1600mm

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  DC 24V Automatic Sliding Door Motor Elevator Door Motor 650-1600mm Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: CIROLLA
Certification: CE/CCC/ SGS
Model Number: 4008
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: 10pcs/carton, weight 2.25kg
Delivery Time: 7working days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Motor Type: Brushless Door Type: Sliding Doors
Dimension: 280*100*90mm Safety Detection: Automatic Stop /Reverse During Opening Or Closing
Door Weight: 1X300kg/2X150kg Door Width: 650~1600mm
Power&Voltage: 24VDC 75W
High Light:

DC 24V Automatic Sliding Door Motor

,

Brushless Elevator Door Motor

,

Elevator Door Motor 75W

DC 24V Automatic Sliding Induction Door Elevator Door Motor



Motor functions and features



1, we adopt brushless DC technology, service life of the brushless DC motor is longer than the brush motor, and it can be with better reliability.



2, small volume, strong power, powerful working force



3, ultra-quiet sound design, low noise, small vibration, we adopt the automatic lubrication technology.



4, it is made with high-strength aluminum alloy material, strong and durable.



5, it can work with the bearing metal alloy wheel driving belt, and with good quality, stability and high applicability.



6, fully sealed structure, durable, no leaking, we adopt the rubber band to protect screws, which makes it to be with anti-pressure and weight-bearing.



7, it can work with internal security protection circuit device, even if the automatic door opens and closes frequently, it also can run with long-term no-trouble.



Description:

1. CE SGS Certificate
2. 2 years warranty
3. Weight of door leaf:150kg/leaf
4. Power:80-250V Build-in Broadband voltage   50-60HZ
5. Ultra silent



Standard Configuration

1. Motor device

2. Main controller

3. Power

4. Tension wheel device

5. Tooth device

6. Gear belt

7. Stopper

8. Aluminium track

9. Hanger device



Multiple Optional Access

Five bit program switch

Remote control handle

Electric lock

UPS battery

Safety photocell sensor

Access control system



Technical Specification

Rang of the Door

Single-leaf

Double-leaf

Clear door opening

900-2800mm

900-2800mm

Door leaf max weight

200kg

150kg x 2

Height of track rail

125mm

Width of track rail

156mm

Power Supply

AC (AC220±10%), 50-60 Hz

Opening Speed

0.7m/s (adjustable)

Closing Speed

0.7m/s (adjustable)

Power consumption

70W

Hold-open time

0-9s (adjustable)

Ambient temperature



-20+50°C



Relative humidity(condensate)

5%-85%

Electric fuse



6.3A



Accessorial voltage

AC24V,640mA

Power supply

80VAC-15% - 260VAC+10%





Motor datas:

Type

Brushless

Voltage

24VDC

Power

75W

No-load speed

150rpm

On-load speed

120rpm

Noise level

≤50dB

Protection class

IP44

Gear Ratio

1:15

Weight

2.5kg

Lifetime

3million cycles,10years

Application

Sliding Glass door



Constructure:



DC 24V Automatic Sliding Door Motor Elevator Door Motor 650-1600mm 0

Product details:

DC 24V Automatic Sliding Door Motor Elevator Door Motor 650-1600mm 1



Production line:DC 24V Automatic Sliding Door Motor Elevator Door Motor 650-1600mm 2



Packing details:

DC 24V Automatic Sliding Door Motor Elevator Door Motor 650-1600mm 3
