Payment & Shipping Terms:
|Door Open Style:||Sliding||Colour:||Black|

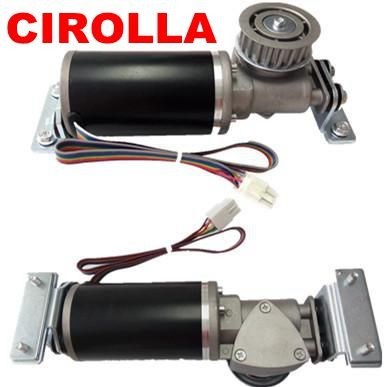

Heavy Duty Sliding Door Motors,
Electric Brushless Gear Motor 75W,
24V DC Automatic Sliding Door Motor
Round Electric Sliding Glass Door Motor Heavy Duty 24V DC Brushless
Code: 413 Type: Brushless Operation Voltage: 24VDC Power: 75W Rotate Direction: CW &CCW
Application: Automatic door Door Open style: Sliding Opening type: With Remote Control
Functional: Automatic operation/hold-open/closed/half-open
Security: Automatic stop/reverse during opening or closing
Door Weight Bearable: 300kg /2 Leaves Door Width: 650~1600mm
Environment temperature: -10 ~ +55ºC Lifetime: 6 million times
Automatic door system is totally micro-computer optimized. Door leaf position setting and adjustment, slide distance setting and adjustment, door leaf opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.
Brushless motor provides power for automatic sliding doors, with silent operation, has big torque, long service life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.
Electric sliding door motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital, which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.
Performance data of Electric Sliding Door Motor:
|Lifetime||6 million times|
Outline drawings of Electric Sliding Door Motor:
Electric Sliding Door Application Examples:
