Payment & Shipping Terms:
|Open Style:||Sliding||Special Function:||Security|
|Opening Type:||With Remote Control||Door Weight Bearable:||1X300kg Single Leaf, 2X150 Kg Double Leaf|
|Material:||Aluminum Alloy Color: Silver|
automatic door spare parts,
sliding door spare parts

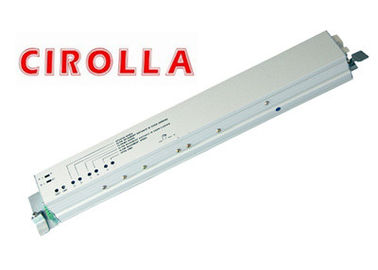

Intelligent Controller Device for Automatic Door Accessories on Sliding Doors
Wisdom miniature computer controller
Automatic door mind is totally microcomputer optimized. Internal signal loops adopt no contact control mode, even after longtime working, opening and closing movement is still accurate. Door leaf position setting and adjustment, slide distance setting and adjustment, door leaf opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.
Automatic Sliding Door Controller is used for any kinds of automatic Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital Door.
Automatic Sliding Door Controller specs:
Door configuration: Single leaf, Double leaves
Limited Weight: ≤1x300kg, ≤2x150kg
Door leaf width: 700-1300mm, 600-1200mm
Power voltage: AC 200-250V, 50-60Hz
Power consumption: < 70W
Opening speed: 200-450mm/s(adjustable)
Closing speed: 200-450mm/s(adjustable)
Hold-open time: 0-9S(adjustable)
Manual force: <40N, <50N
Sensor mode: Various
Sliding noise: ≤55Db
Environment temperature: -20 ~ +50ºC
Automatic Door Controller pictures:
Pictures of Automatic Sliding Door Controller:
The door open immediately if encounter an obstacle.
When the doors is closing, if it meets a pedestrian or obstacle, the door leaf will reverse automatically, the door will open immediately, it prevents pinching events and door damaged ,also improves the automatic door working life.
If the electricity is failed, the door will stop moving. However, there is very little resistance, door leaf can easily be opened by hand.
Good modular design offers very easy installation. Only need to fit all components into the guide rail and connect each part well, it can work after activating the power supply.
