Product Details:
Payment & Shipping Terms:
|
| Voltage: | DC36v | Stroke: | 100mm |
|---|---|---|---|
| Rod Linear Drive Push Rod DC Motor 's Load Force: | 6000 | IP Grade: | IP54 |
| Color: | Black | Rated Power: | 55w |
| Loading Speed: | 5 | Type: | Liner Actuator Electric Putter Motor |
| Leading Time: | 100-500pcs 15days, 500-1000pcs 30days | Material: | Aluminum Alloy |
| Highlight: | 24v brushless motor,24 volt dc motor |
||
Hot Sell Mini Size Liner Actuator Electric Putter Motor 12v/24v/36v
Parameter Date
| Liner Actuator Electric Putter Motor Technical Parameter | |||||||
| Power Rating | ≦55w | ||||||
| Voltage(V) | 12VDC/24VDC/36VDC | ||||||
| Stroke(mm) | 100/150/200/250/300/400/500 | ||||||
| Loading Speed(mm/s) | 5 | 9 | 18 | 25 | 32 | 50 | 100 |
| Loading Force (N) | 6000 | 3000 | 2000 | 1000 | 800 | 600 | 300 |
| Mounting Distance | S+175 | ||||||
| Limit Switches | Built-In Internal | ||||||
| Operating | 40 | ||||||
| Opeating Frequency | 10%-20% | ||||||
| Noise Grade | ≦45dB | ||||||
| IP Grade | IP54 | ||||||

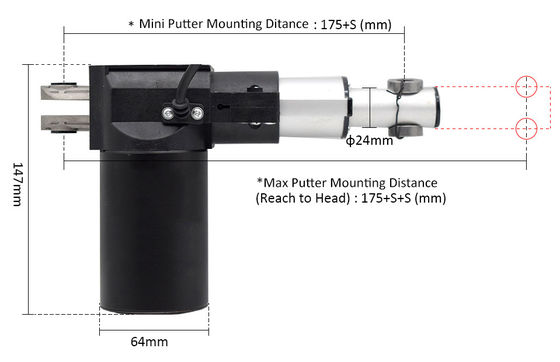

Dimension:
Application:
This series of DC electric putter is widely used in electric nursing bed, operation table, traction table, massage chairs,
dental chairelectric wheelchair, electric sofa, electric booth, electric sunroof, ergonomic furniture for linear motion actuator occasions the installation is very convenient, is widely applied in many fields of medical, fire, home furnishing, mechanical and electricalchemical industry, sanitary ware, leisure etc.
Our Certificate: ISO9001. CE (EMC-LVD)
Cirolla is a Supplier&Exporter specialized in producing DC MOTORS including Brush motor & Brushless motors. Products are mainly used in Automobile Wiper system, Automatic door system, Liner Actuator Electric Putter Motor, products are sold to world-wide markets inlcuding Europe, North &South America, Middle East, Southeast Asia, Africa, Australia etc.
Warm Prompt:
1.Choose stroke and install distance
Firstly, confirm the distance that the electric putter in your devices needs to push and pull.
Secondly, make sure that your device can hold the reasonable size of the electric draw stem.
2.Confirm the load and speed:
by considering the use of electric draw stem and the specific situation, compare of the specifications of the electric putter to choose appropriate putter.
3.Determine the voltage or select controller:
select the specific work voltage of dc putter motor can choose 12V, 24V, 36V.
4.If you need whole set liner electric putter motor , we can supplier it as per your request.
Dear All, If has any question or need offer, Freely contact us.
Cirolla wish all good luck forever n n
