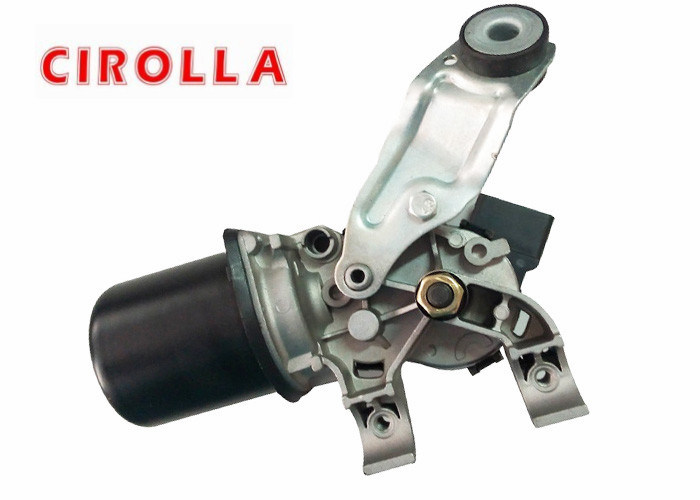

Nylon CW and CCW Windshield Wiper Motor 12V for Renault Valeo

large.img.alt
small.img.alt

Large Image :  Nylon CW and CCW Windshield Wiper Motor 12V for Renault Valeo Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: CIROLLA
Certification: CE/CCC/ SGS
Model Number: 3103
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiation
Packaging Details: Standard,10pcs/carton, weight 1.5kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 50,000pcs/month
Detailed Product Description
Type: Worm Gear Reduction Voltage&Power: 12VDC, 30W
Operating Speed: High Speed& Low Speed Rotate Direction: CW And CCW
Gear Material: Nylon Protection Class: IP 44
Function: Drive Wiper System Of Automobiles
High Light:

windscreen wiper motor

,

car wiper motor

Nylon CW and CCW Windshield Wiper Motor 12V for Renault Valeo



12VDC Windshield Wiper Motor for Renault Valeo OE No.: 460041/7701054828/7701207739/8200036921



Quick Detail:



Voltage&Power:12VDC, 30W                   Structure and Working Principle: Brush

Operating Speed: High speed& Low speed          Rotate direction: CW and CCW

Gear material: Nylon                           Protection class: IP 44

Function: Windshield wiper system of automobiles





Description:



A wiper generally consists of an arm, pivoting at one end and with a long rubber blade attached to the other. A gear motor is driving device of the wiping system. The blade is swung back and forth over the glass, pushing water from its surface.

Suitable For Renault Valeo

Renault Valeo OE No.: 460041/7701054828/7701207739/8200036921





Applications:



Automotive mini wiper motor widely used for all kinds of cars, trucks and buses


Nylon CW and CCW Windshield Wiper Motor 12V for Renault Valeo 0





Specifications:

Wiper Motor Performance Data:



Type

Brush

Voltage

12VDC

Power

30W

No-load Speed

60rpm

No-load Current

1.9A

On-load Speed

50rpm

On-load Current

5.6A

Stall torque

≥20Nm

Gear material

Nylon

Protection class

IP44

Rotate direction

CW and CCW

Weight

1.5kg





Wiper Motor Characteristic curves:



Nylon CW and CCW Windshield Wiper Motor 12V for Renault Valeo 1





State

Voltage

Current

Pin

Torque

Speed

Pout

Eff

V

A

W

N.m

rpm

W

%

Speed_max

12.00

1.939

23.28

0.27

62.1

1.76

7.5

Eff_max

11.97

5.646

67.60

4.09

50.2

21.53

31.8

Pout_max

11.90

13.95

166.2

12.81

27.9

37.43

22.5

Torque_max

11.89

23.64

281.2

21.86

0.0

0.00

0.0

End

11.89

23.64

281.2

21.86

0.0

0.00

0.0

'


Competitive Advantage:



- Reduced space occupancy in the plenum area
- Reduced weight of the motor
- Reduced size of the motor
- Only 3 wires to the motor (plus, minus and LIN)
- 'Special Park' - automatic electronic control actuates this mode when the wipers are not in use
