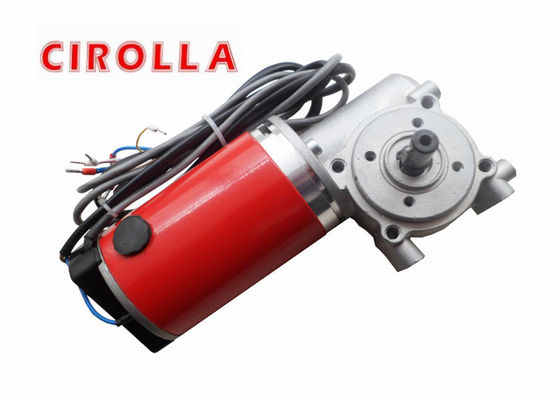

High Torque Red Sliding Glass Door Motor / DC Brush Gear Motor 24V 60W

large.img.alt
small.img.alt

Large Image :  High Torque Red Sliding Glass Door Motor / DC Brush Gear Motor 24V 60W Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: CIROLLA
Certification: CE/CCC/ SGS
Model Number: 4002
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiation
Packaging Details: Standard pack,10pcs/carton, weight 2.0kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 50,000pcs/month
Detailed Product Description
Operation Voltage: 24VDC, 60W Motor Type: Brush
Rotation Direction: Reversible Color: Optional (Golden/Black/Red/Blue)
Encoder Available: 1 Signal, 40pulse Function: Automatic Sliding Door Operators
High Light:

brush gear motor

,

electric door motor



High Torque Red Sliding Glass Door Motor / DC Brush Gear Motor​





Description:



Brush gear dc motor supported by intelligent Honeywell software can self-learn the stroke. The brush motor and the worm-reduction gear are integrated together, with advantageous features such as higher efficiency, larger torque and longer life span. The motor noise is extremely low because of its precise manufacturing technology and direct driving design. The motor can lock automatically if there is no triggering signal. The powerful closing force keeps the door shut fast.





Applications:



This kind of brush gear dc motors are used for Automatic sliding door operators, interior door operators, telescopic door operators, automatic swing door operators, emergency evacuation automatic doors and curved doors, which are widely used in hotels, banks, airports, commercial buildings, hospitals and factories.





Specifications:

Brush Motor specs:



Type

Brush

Voltage

24VDC

Power

60W

No load Speed

250rpm

No load Current

0.7A

On load Speed

200rpm

On load Current

3.5A

Stall torque

12Nm

Protection class

IP44

Weight

1.5kg

Encoder Honeywell

1signal,40pulse





Competitive Advantage:



1)  Silent operation, suitable for continuous service;
2)  Micro-computer controller, self setup and adjustment;
3)  Automatic stop when meet obstacles during opening, automatic reverse when meet obstacles during closing;
4)  Adjustable door opening speed and distance;
5)  Automatic closing function after opening, auto closing time adjustable;
6)  Soft start and soft closing;
7)  Full open or half open optional;
8)  Easy open the door leaf by hands during power off;
9)  High density aluminum track, special configuration design keep in shape always;
10)  Smooth operation of the track, good for continuous service, quiet operation.





Motor Outline drawings:



High Torque Red Sliding Glass Door Motor / DC Brush Gear Motor 24V 60W 0



Sliding glass door work Group:



High Torque Red Sliding Glass Door Motor / DC Brush Gear Motor 24V 60W 1





Sliding glass door Application:



High Torque Red Sliding Glass Door Motor / DC Brush Gear Motor 24V 60W 2
