Home ProductsElectric DC Motor

High Torque Electric Motor with Planetary Gears , 24 volt dc motor

I'm Online Chat Now
China Cirolla Motor Co.,Ltd certification
China Cirolla Motor Co.,Ltd certification
Thank you so much for all you've done in making things easy for me. I see that you must be the greatest asset to your company.

—— Gary Strauss-USA

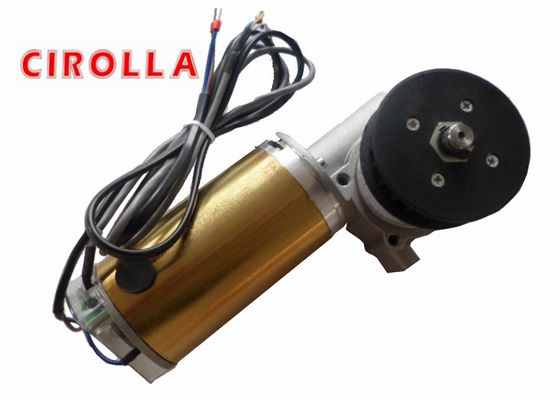

High Torque Electric Motor with Planetary Gears , 24 volt dc motor

large.img.alt
small.img.alt

Large Image :  High Torque Electric Motor with Planetary Gears , 24 volt dc motor Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: CIROLLA
Certification: CE/CCC/ SGS
Model Number: 4225
Payment & Shipping Terms:
Minimum Order Quantity: 300PCS
Price: Negotiation
Packaging Details: Standard,10pcs/carton, weight 2.0kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 50,000pcs/month
Detailed Product Description
Motor Type: Brush, 24VDC, 60W Construction: Permanent Magnet
Application: Automatic Sliding Door Rotation Direction: Reversible
Door Configuration: Single Door, Double-door Encoder Available: 1 Signal, 40pulse, Honeywell Brand
High Light:

worm geared motor

,

small dc electric motor





High Torque Electric Motor with Planetary Gears , 24 volt dc motor





Description:



In an electric motor the moving part is the rotor which turns the shaft to deliver the mechanical power. The rotor usually has conductors laid into it which carry currents that interact with the magnetic field of the stator to generate the forces that turn the shaft. However, some rotors carry permanent magnets, and the stator holds the conductors.





Specifications:

Motor specs:



Type

Brush

Voltage

24VDC

Power

60W

No load Speed

250rpm

No load Current

0.7A

On load Speed

200rpm

On load Current

3.5A

Stall torque

12Nm

Protection class

IP44

Weight

1.5kg

Encoder Honeywell

1 signal,40pulse





Applications:



Electric DC Motors are Found in applications as diverse as industrial fans, blowers and pumps, machine tools, household appliances, power tools, and disk drives, electric motors can be powered by direct current (DC) sources, such as from batteries, motor vehicles or rectifiers, or by alternating current (AC) sources, such as from the power grid, inverters or generators. Small motors may be found in electric watches. General-purpose motors with highly standardized dimensions and characteristics provide convenient mechanical power for industrial use. The largest of electric motors are used for ship propulsion, pipeline compression and pumped-storage applications with ratings reaching 100 megawatts. Electric motors may be classified by electric power source type, internal construction, application, type of motion output, and so on.



High Torque Electric Motor with Planetary Gears , 24 volt dc motor 0



High Torque Electric Motor with Planetary Gears , 24 volt dc motor 1





Competitive Advantage:

  • Automated Control - Automated controls are easily installed to operate electric motors, providing the versatility of automatic and remote Start/Stop functions.
  • No Fossil Fuels - They require NO fuel, engine oil maintenance, battery service, and do NOT freeze in sub-zero temperatures.
  • Labor Cost Savings - Electric motors reduce requirements for labor due to lower maintenance and easier control which ultimately makes production more profitable by reducing costs).
  • Occupational Safety - Motors contribute to the safety of the work environment, emitting little noise, NO exhaust, and without flammable fuels.
