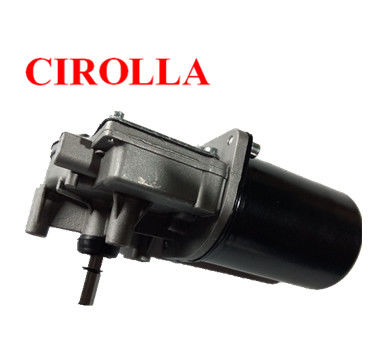

24V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor

24V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor
24V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor 24V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor

Large Image :  24V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: CIROLLA
Certification: CE/CCC/ SGS
Model Number: 8030
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiation
Packaging Details: Standard,10pcs/carton, weight 2.0kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 50,000pcs/month
Detailed Product Description
Function: Control Type: Brushed, Worm Gear Reduction
Voltage&Power: 24VDC,50W Construction: Permanent Magnet
Operating Speed: High Speed Gear Material: Glass Fiber
Application: Universal, Industrial, Household Appliances, Machine Power System
High Light:

ventilator motor

,

small worm gear motor



Worm gear Dc Motor 24V Shaft Drive Breathing Machine DC Motor​





Description:



A gear motor is a type of electrical motor. Like all electrical motors, it uses the magnetism induced by an electrical current to rotate a rotor that is connected to a shaft. The energy transferred from the rotor to the shaft is then used to power a connected device.



In a gear motor, the energy output is used to turn a series of gears in an integrated gear train. There are a number of different types of gear motors, but the most common are AC (alternating current) and DC (direct current).





Applications:



Gear motors are commonly used in conveyor-belt drives, home appliances, in handicap and platform lifts, medical and laboratory equipment, machine tools, packaging machinery and printing presses.





Specifications:



Parameters of Worm Gear DC motor:

Code

8030

Type

Brush

Voltage

24VDC

Power

≥50W

No load Speed

125rpm

No load Current

0.6A

On load Speed

100rpm

On load Current

2.8A

Work torque

3Nm

Stall torque

15Nm

Gear material

Glass fiber

Protection class

IP44

Weight

1.5kg





Characteristic curves of Worm Gear DC motor:



24V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor 024V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor 1





Outline drawings of Worm Gear DC motor:



 24V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor 2



Competitive Advantage:



These miniature gear motors have also various much-needed characteristics, such as form factors, strength, torque, linear performance and other technical capabilities. All of which are important for such applications. In addition, DC gear motors meet high quality standards of reliability, ruggedness, and compactness. These are characteristics that you need to use in professional commercial applications.





Transport:



24V Shaft Drive Breathing Machine Medical Motor , Micro Worm Gear Motor 3
