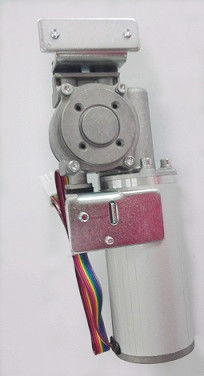

Lightweight 24V DC 75 W Automatic Sliding Door Motor With Silent Operation

Large Image : Lightweight 24V DC 75 W Automatic Sliding Door Motor With Silent Operation Get Best Price

Product Details:

Place of Origin:	Zhejiang,China
Brand Name:	CIROLLA
Certification:	CCC/CE/SGS
Model Number:	4004-2

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	standard 10pcs/canton, 2.5kg//pc
Delivery Time:	7working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	50000/month

Contact Now

Detailed Product Description

Type:	Brushless	Shap:	Round
Voltage:	24VDC	Power:	75W
Weight:	2.5kg	Application:	Automatic Door
Highlight:	Sliding Door Motors 24v Dc , Silent Operation Brushless Gear Motor , Lightweight Automatic Sliding Door Motor

24VDC, 75W high quality and low noice round brushless Automatic Sliding Door motor

Description:

Working Temperature-25~ c+55 c
Maximum Noise below 50dB
Input power supply AC110V-240V;
DC24V brushless motor
Door Weight 300kg/single leaf, 2X150kg/ Double leaves
Door Width: 650~1600mm
Railing Type: High Strength Aluminum Alloy Rally
Fixed Pulley Hanging Wheel Sets/Convenient Level Adjustment/Automatic Alignment/Easy Installation
Working Temperature-25~ c+55 c

Applications:

This Round type Brushless DC Motor can be used for frame or frameless Sliding Glass Door Operators.

Lightweight 24V DC 75 W Automatic Sliding Door Motor With Silent Operation 0

Specifications:

Lightweight 24V DC 75 W Automatic Sliding Door Motor With Silent Operation 1

Brushless dc motor:

Type	Brushless
Voltage	24VDC
Power	75W
No-load speed	150rpm
On-load speed	120rpm
Noise level	≤50dB
Protection class	IP44
Gear Ratio	1:15
Weight	2.5kg
Lifetime	3million cycles,10years
Application	Sliding Glass door
