Product Details:
Payment & Shipping Terms:
|
| Type: | Worm Gear DC Motor | Construction: | Permanent Magnet |
|---|---|---|---|
| Power&Voltage: | 12VDC,40W | Structure And Working Principle: | Brushed |
| Operating Speed: | High Speed | Gear Material: | Bronze |
| Application: | Universal, Industrial, Household Appliances, Machine Power System | ||
| High Light: | permanent magnet gear motor,24vdc gear motor |
||

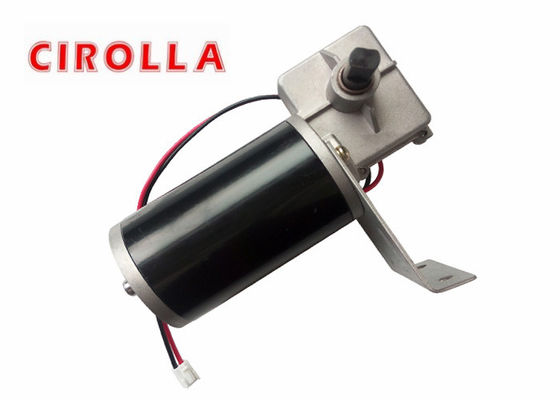

220V DC Mini Electric Gear Brush Motor for Electric Clothes Hanger , Smooth Operation
Description:
The operation of any Brush DC Motor is based on electromagnetism. The Brush DC Motor has two terminals; when voltage is applied across the two terminals, a proportional speed is outputted to the shaft of the Brush DC Motor. A Brush DC Motor consists of two pieces: the stator which includes the housing, permanent magnets, and brushes, and the rotor, which consists of the output shaft, windings and commutator.
Applications:
Although the brushless DC motor has surpassed the Brush DC Motor because of its longetivity and reliability, the Brush DC Motor is still appropriately chosen for many applications. Most commonly, the Brush DC Motor is found in household applications. It can also be found in the industrial world because of its versatility in altering its torque to speed ratio.
Specifications:
Brush DC Motors:
|
Type |
Brush |
|
Voltage |
220VDC |
|
Power |
100W |
|
No-load Speed |
70±5rpm |
|
No-load Current |
0.2A |
|
On-load Speed |
56±5rpm |
|
On-load Current |
0.7A |
|
Noise level |
≤55dB |
|
Gear material |
Bronze or Nylon |
|
Protection class |
IP44 |
|
Application |
Electric clothes hanger |
Competitive Advantage:
The DC Brush Motor is one of the earliest of all electrical motor designs. It is usually the motor of choice for the majority of torque control and variable speed applications. The following discusses the advantages and disadvantages of using a Brush DC Motor in machinery and automated processes.
Outline drawing of Motors:
