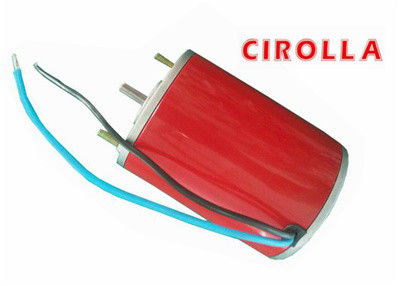

180W DC 24V Roller Garage door motor High Speed Low Noise 50HZ

large.img.alt
small.img.alt

Large Image :  180W DC 24V Roller Garage door motor High Speed Low Noise 50HZ Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: CIROLLA
Certification: CE/CCC/ SGS
Model Number: 80ZYT
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiation
Packaging Details: Standard,10pcs/carton, weight 1.5kg
Delivery Time: 25-30days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 50,000pcs/month
Detailed Product Description
Motor Type: Brushed PMDC Rated Voltage: 12VDC 180W
Style: Automatic Garage Door Opener Input Power: AC 230V, 50HZ
Environment Temperature: -20 ~ +70ºC Application: Automatic Garage Door
High Light:

electric garage door opener

,

automatic garage door motor

180W DC 24V Roller Garage door motor High Speed Low Noise 50HZ​





Applications:



Widely used in automation roll-up garage door opener.





Specifications:

Motor Performance date:



Type

Brush

Voltage

12VDC

Power

180W

No load Speed

4200rpm

No load Current

3.0A

On load Speed

3300rpm

On load Current

19.5A

Stall torque

≥655m.Nm

Protection class

IP44

Weight

2.0kg





Description:



A garage door opener is a motorized device that opens and closes Garage Doors. Motor is the drive device of the automatic garage door system.The typical electric garage door opener consists of a power unit that contains the electric motor. The power unit attaches to a track. Recent innovation in the garage door opener is a fingerprint-based wireless keypad. More sophisticated features are also available,such as an integrated carbon monoxide sensor to open the door in case of the garage being flooded with exhaust fumes.





Motor Characteristic curves:



180W DC 24V Roller Garage door motor High Speed Low Noise 50HZ 0



Outline drawings of motor:



180W DC 24V Roller Garage door motor High Speed Low Noise 50HZ 1





Competitive Advantage:



1. Doors are easily opened by hand by the releasing system in case of power off

2. Simple programming of operation settings

3. PC plastic shell, light and durable

4  Mechanism limit travel, convenient operation and easy setting

5. Turn on control box light automatically when you enter a dark room---hands free
